ShockWave
The Imants ShockWave is a heavy-duty, PTO-driven linear decompactor that relieves soil compaction, reduces bulk density, improves aeration, and enhances water movement with minimal surface disruption.

Product Details

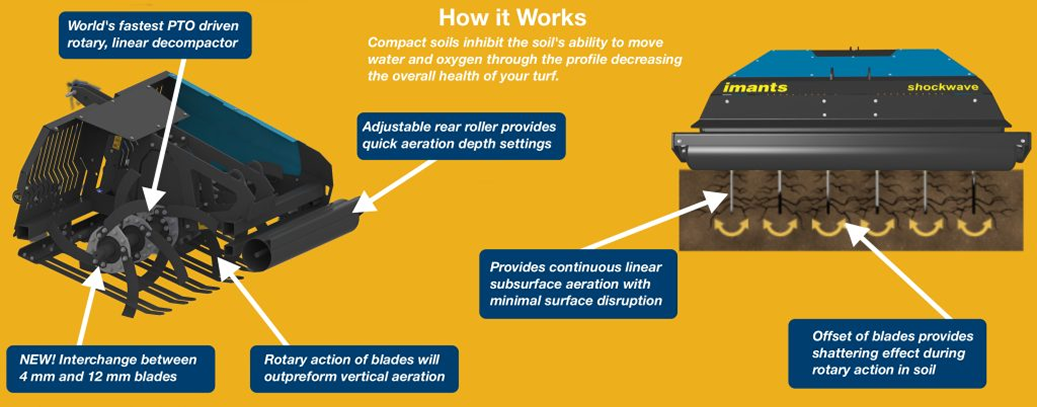

The Imants ShockWave is a linear decompactor designed to both maintain proper soil porosity and bulk density during the growing season and revitalize heavy wear areas by relieving soil compaction, improving aeration and removing surface water. At a working depth of 4 1⁄2” to 10” or 15” depending on the model, the ShockWave provides maximum surface decompaction with minimal surface disruption. The ShockWave is reputed to be the world’s fastest PTO driven rotary, linear decompactor. All ShockWave models feature a no-chains, direct drive design, and maintenance free “sealed for life” bearings. The ShockWave features overload protection by a torque limiting PTO shaft.
- Reduces bulk density
- Increases soil’s ability to move water
- Increases aeration

Model Specifications
| Model 1.0 | Model 1.6 | Model 2.1 | |
|---|---|---|---|
| Working Width | 39″ | 39″ | 39″ |
| Transport Width | 69″ | 69″ | 69″ |
| Working Depth | 4 3/8″ – 10″ | 4 3/8″ – 10″ | 4 3/8″ – 10″ |
| Weight (approx) | 1,157 lbs | 1,157 lbs | 1,157 lbs |
| Weight with Pre-cutters | 1,294 lbs | 1,294 lbs | 1,294 lbs |
| Blade Spacing | 10″ | 10″ | 10″ |
| Blade Thickness | 5/32″ or 1/2″ | 5/32″ or 1/2″ | 5/32″ or 1/2″ |
| Number of Blades | 12 | 12 | 12 |
| Power Requirement | 40 – 55 hp | 40 – 55 hp | 40 – 55 hp |
| Coulters | 4 | 4 | 4 |
| Weight of Coulter Option | 97 lbs | 97 lbs | 97 lbs |
Tractor Requirement – 540 pto. Creep gear or hydrostatic drive, 4-wheel drive recommended.
Refer to individual tractor specifications for lifting capacity.
Operation Speed – 0.3 – 0.9 mph
